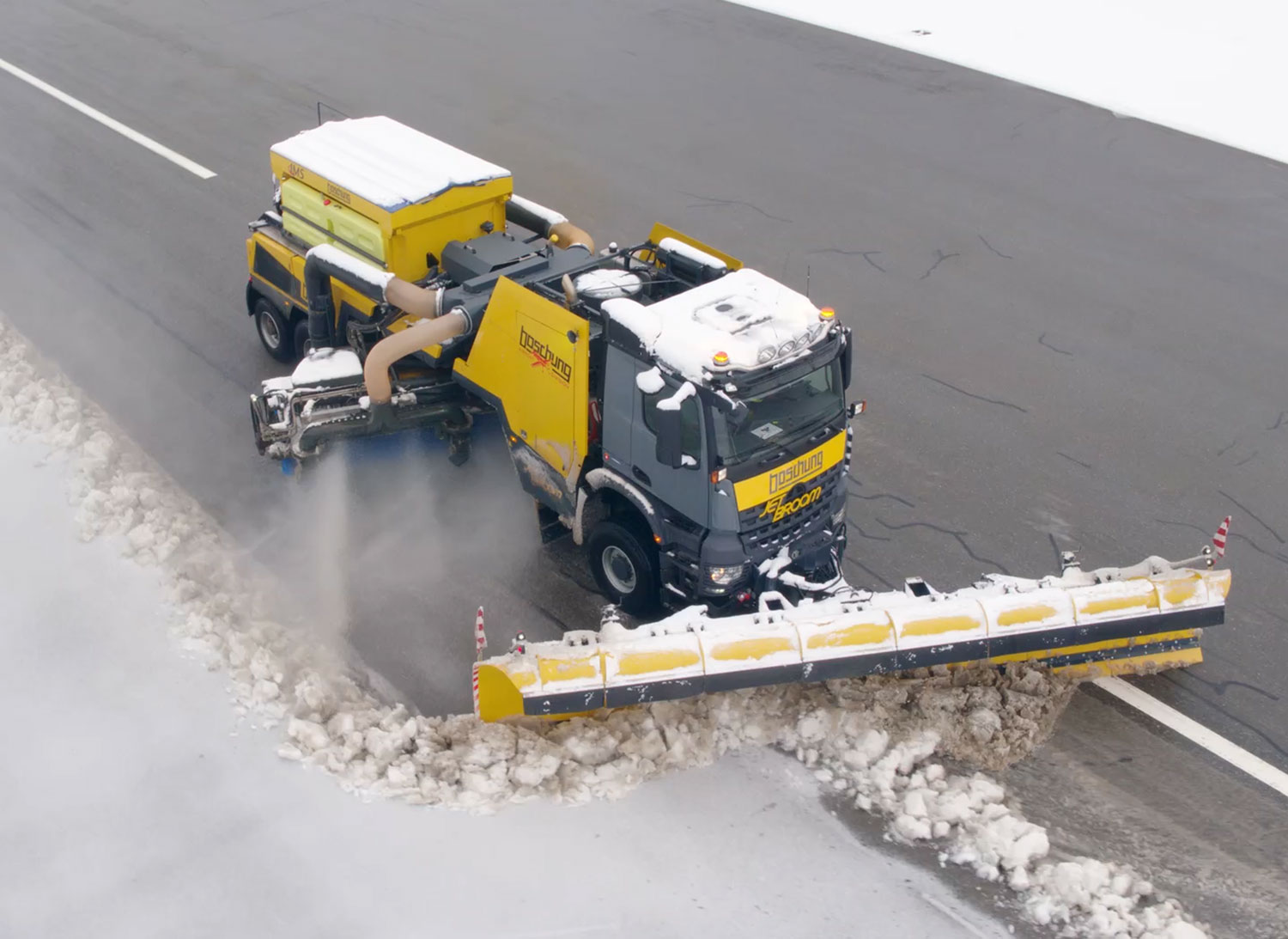

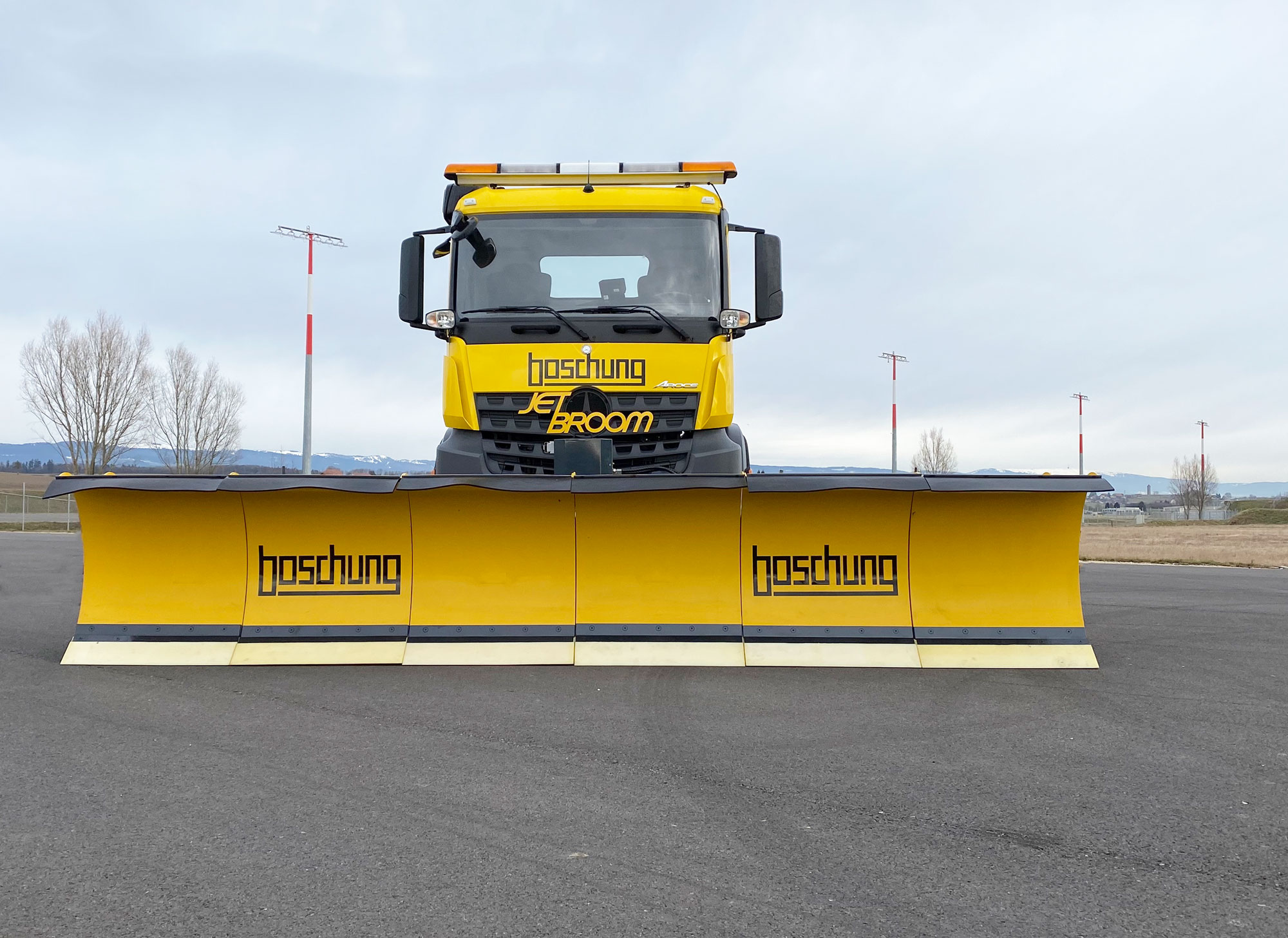

Jetbroom
10000

Boschung

Subject to technical modifications without prior notice.

Jetbroom
9000

Boschung

Subject to technical modifications without prior notice.

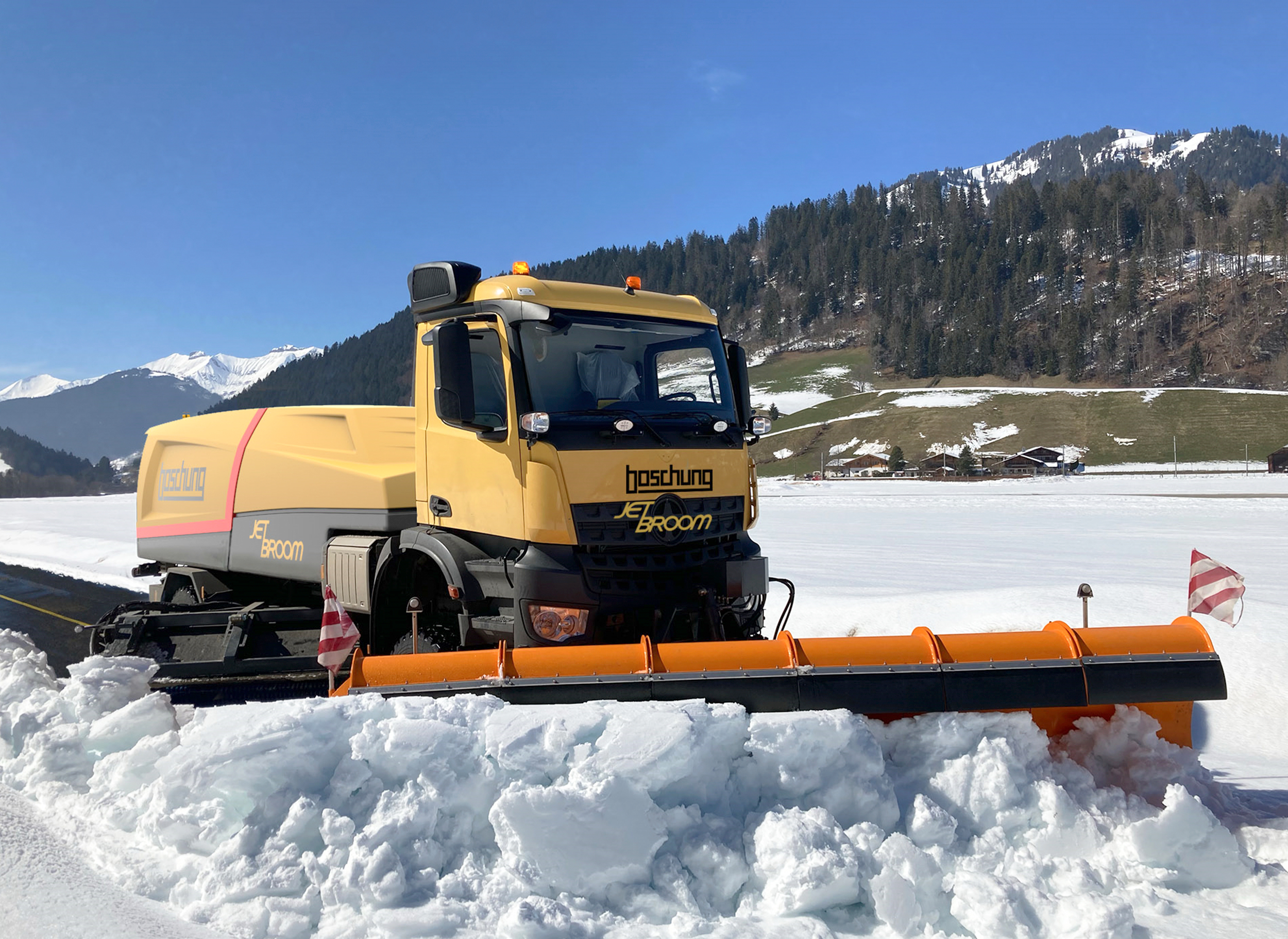

Jetbroom
4000

Boschung

Subject to technical modifications without prior notice.

Dimensions

Length 2-axle chassis

approx. 10,400 mm

Length 3-axle chassis

approx. 10,700 mm

Chassis width

approx. 2,500 mm

Chassis height

approx. 3,775 mm

Turning radius

approx. 8,755 mm

Dimensions

Length 2-axle chassis

approx. 9,300 mm

Length 3-axle chassis

approx. 9,675 mm

Chassis width

approx. 2,500 mm

Chassis height

approx. 3,650 mm

Turning radius

approx. 8,715 mm

Dimensions

Length 2-axle chassis

approx. 9,500 mm

Chassis width

approx. 2,500 mm

Chassis height

approx. 3,900 mm

Turning radius

approx. 9,000 mm

Weights

Front axle

14 t

Rear axle

14 t

3rd axle

7 t

Weights

Front axle

14 t

Rear axle

14 t

3rd axle

6 t

Weights

Front axle

11 t

Rear axle

11 t

Engine

Drive engine

EURO 6
330 kW / 450 hp

Auxiliary engine

EURO 6
330 kW / 450 hp

Engine

Drive engine

EUROMOT 3B
320 kW / 428 hp

Auxiliary engine

EUROMOT 3B
320 kW / 428 hp

Engine

Drive engine

Euro 6 / Euro 5
240 kW / 326 hp

Auxiliary engine

EM Stage V / EM Stage IIIB
260 kW / 350 hp

Transmission

Automatic gear box type

PowerShift 3
for heavy trucks

Transmission

Automatic gear box type

PowerShift 3
for heavy trucks

Transmission

Automatic gear box type

PowerShift 3
for heavy trucks

Electrical system

Power supply

24 V

2 batteries

12 V / 220 Ah

Alternator

28 V, 150 A

Electrical system

Power supply

24 V

2 batteries

12 V / 180 Ah

Alternator

28 V, 100 A

Electrical system

Power supply

24 V

2 batteries

12 V / 220 Ah

Alternator

28 V, 150 A

Drive and Steering

Full mechanical 4x4

all-wheel drive
all-wheel steering

Crab steering

Drive and Steering

Full mechanical 4x4

all-wheel drive
all-wheel steering

Crab steering

Drive and Steering

Full mechanical 4x4

all-wheel drive
all-wheel steering

Crab steering

Driving performance

Driving speed

0 - 80 km/h

Working speed

Up to 60 km/h depending on operational conditions

Driving performance

Driving speed

0 - 80 km/h

Working speed

Up to 60 km/h depending on operational conditions

Driving performance

Driving speed

0 - 80 km/h

Working speed

Up to 60 km/h depending on operational conditions

Snow removal

Air-jet system in front of the broom

Quattro-Jet system

Broom

Cassette or wafer (steel, poly, mixed)

Broom diameter

1,170 mm

Broom length

from 4,200 mm to 6,240 mm

Broom working width

from approx. 3,900 mm to approx. 5,800 mm

Snow plow

Plow width

from 6,400 mm to 8,400 mm

Plow working width

from approx. 5,440 mm to approx 7,120 mm

Snow removal

Air-jet system in front of the broom

Quattro-Jet system

Broom

Cassette or wafer (steel, poly, mixed)

Broom diameter

914 mm

Broom length

from 4,200 mm to 6,000 mm

Broom working width

from approx. 3,900 mm to approx. 5,560

Snow plow

Plow width

from 6,400 mm to 8,400 mm

Plow working width

from approx. 5,440 mm to approx. 7,120 mm

Snow removal

Air-jet system in front of the broom

Quattro-Jet system

Broom

Cassette or wafer (steel, poly, mixed)

Broom diameter

914 mm

Broom length

4,200 mm

Broom working width

approx. 3,560 mm

Snow plow

Plow length

5,400 mm

Plow working width

approx. 4,580 mm

De-icing

Liquid chemicals

De-icer installed on the platform (serial tank system) with spray head technology (left, right, middle inside vehicle width).

Spreading width:
3 m - 15 m

Solid chemicals

De-icer installed on the platform (steel hopper) with spinner disc technology.
Spreading width:
3 m - 12 m

Mixed chemicals

De-icer installed on the platform (steel hopper with side tanks) with spinner disc technology.

Spreading width:
3 m - 12 m

De-icing

Liquid chemicals

De-icer installed on the platform (serial tank system) with spray head technology (left, right, middle inside vehicle width).

Spreading width:
3 m - 15 m

Solid chemicals

De-icer installed on the platform (steel hopper) with spinner disc technology.

Spreading width:
3 m - 12 m

Mixed chemicals

De-icer installed on the platform (steel hopper with side tanks) with spinner disc technology.

Spreading width:
3 m - 12 m

De-icing

Liquid chemicals

De-icer with spray head technology (left, right, middle inside vehicle width).

Spreading width: 3 m - 15 m

High-speed vacuum

Hopper capacity

9 m³

Fresh water capacity

Up to 3,000 liters

Sweeping width

4,200 mm

High-speed vacuum

Hopper capacity

9 m³

Fresh water capacity

Up to 3,000 liters

Sweeping width

4,200 mm



Rear suction unit

Width

2,500 mm

Installed to the hopper at vehicle rear to suck any kind of liquids (water, oil, glycol, etc)

Rear suction unit

Width

2,500 mm

Installed to the hopper at vehicle rear to suck any kind of liquids (water, oil, glycol, etc)



Magnetic bar

Width

2,500 mm 4,200 mm

Magnetic bar

Width

2,500 mm 4,200 mm

Magnetic bar

Width

2,500 mm 4,200 mm
